Feynman diagram symbols

Feynman diagrams are intended to help us think about what happens but they cannot represent anything like a true image of interactions that take place in 3 dimensions.

We use this code on the diagrams, you might find different codes used by some publishers. This one code is used by the Institute of Physics and is common, but not universal.



Feynman diagrams

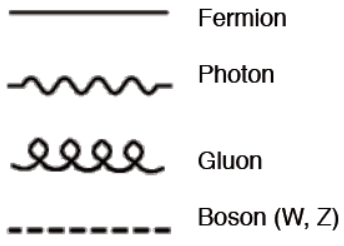

The particles entering and leaving the interaction (fermions) are shown as solid lines. Exchange particles shown here are either photons or a weak interaction bosons.

The changes in direction of the particles simply represents a change in momentum. They are not vector diagrams, there is no scale. An upward arrow on the line shows a real particle and a downward arrow is an antiparticle.

For example, interaction between two electrons.

The wavy line represents the energy change

or exchange particle which has a

brief or virtual existence.

In this case a photon

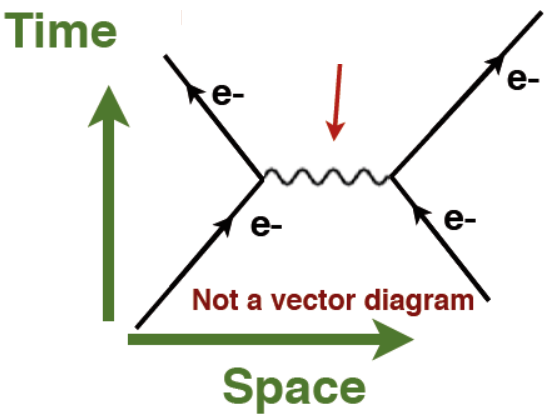

Feynman diagram-Electrons interacting



More examples

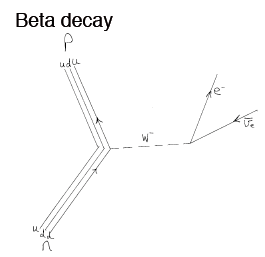

Feynman diagram-beta decay

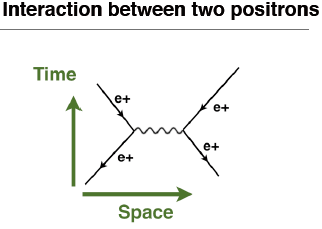

Feynman diagram-positrons interacting

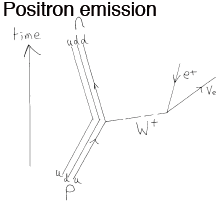

Feynman diagram-positron emission

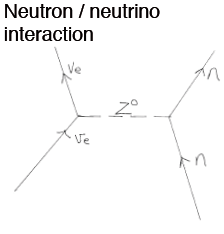

Feynman diagram-neutron neutrino interaction

Feynman diagram-electron capture





PDF and video lesson

You can download a PDF of these notes here:Feynman diagram notes

There is a short video lesson below which explains a little more thoroughly.
