Using a Hertzsprung Russell diagram to estimate distance

The scientists noticed that large bright stars had a colour near the blue end of the spectrum. Because they were large the gravitational forces are great and that makes the fusion reaction to go faster. With the higher temperature more radiation of shorter wavelength is emitted.

A cluster of stars showing colours













H&R H&R produced a chart relating the colour of a star to its absolute magnitude or brightness.

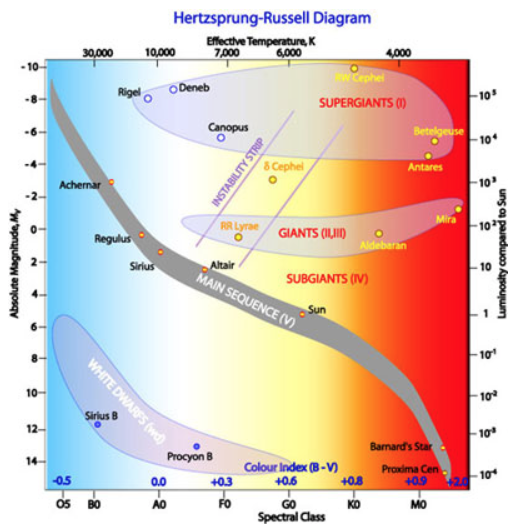

A Hertzsprung Russell diagram

Hertsprung Russell diagrams

The especially useful part id the narrow band of “main sequence stars” of similar type and size as our own sun. These stars can be used as markers to estimate distance.

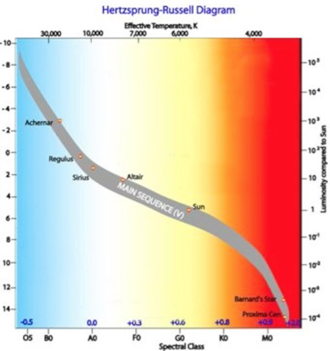

Simplified HR diagram

The star, in this example Sirius, is examined and its colour is determined as well as the apparent brightness. From the colour it is placed on the graph and then the absolute magnitude is assessed by drawing a horizontal line to the vertical scale.

A calculation can then be made to assess the distance of the star from the Earth. The method gives a reasonable estimate but it is not highly accurate.

Using an HR diagram
